Timers real-time

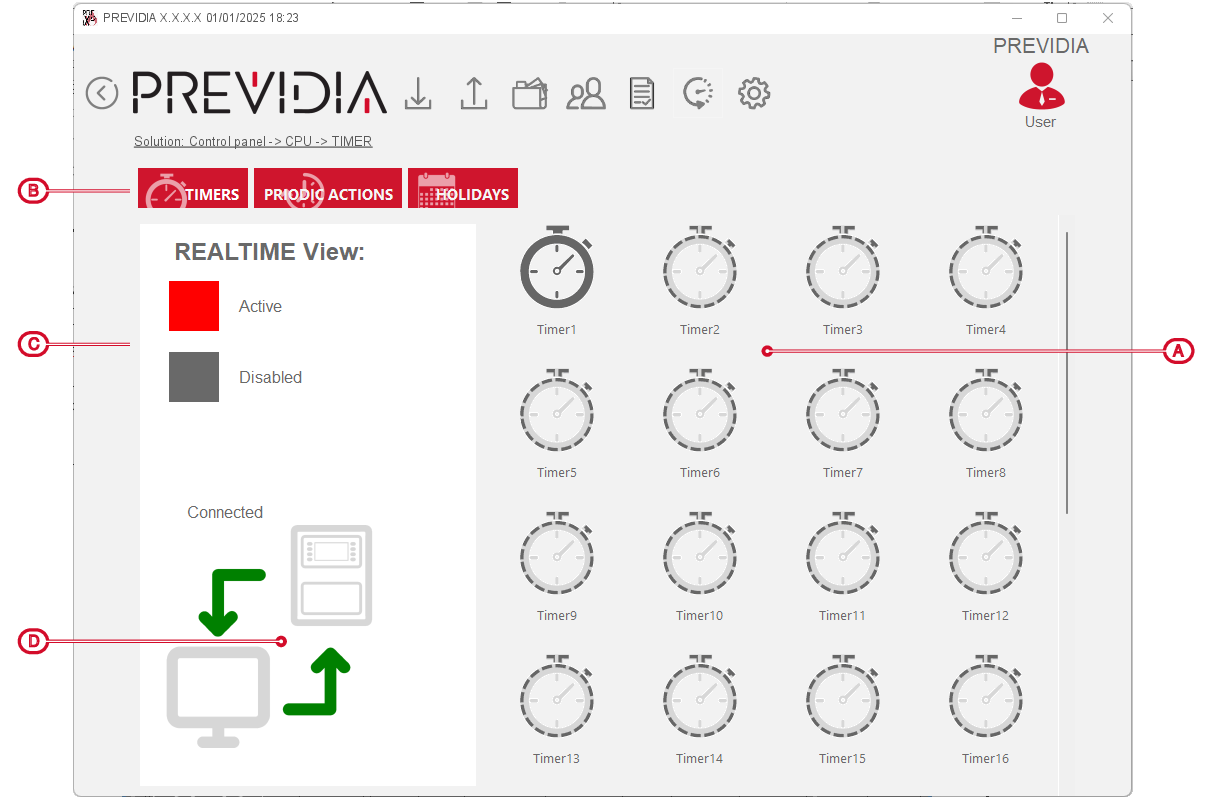

By accessing real time whilst in the timer programming section, the software connects directly to the system and shows the activation status of the configured timers indicated by the colour of the relative icons:

[A]

Selectable timers

[B]

Buttons for the functions and programming of the selected timer

[C]

Timer status caption

[D]

Connection status

The status of each timer is indicated by a specific colour, as shown in the caption on the left, and which results from their activation.

ACTIVE

Activation of timer in progress

DISABLED

Disabled timer

DEACTIVATED

Timer inactive

The icon on the bottom left of the section [D] shows the real-time connection status:

  • green arrows – connected

  • red arrows – disconnected
